Macsa laser equipment is used to encode and mark products of a wide variety of materials, including paper, cardboard, plastics (PET, PVC, HDPE), glass, metals and wood. The messages and graphics that are achieved are of high quality, at a minimum operating cost and at high speeds.
Application News regularly provides a sample of products that are encoded and labelled with Macsa lasers, every day and worldwide.
Years ago, double glazed windows used plastic spacer bars to separate the two panes of glass. Improvements in the materials used to manufacture the frames have made it possible to improve the insulation quality, as well as to use new, more sustainable materials, which must also be identified in order to guarantee the internal traceability of the product.
Marking on extruded construction profile

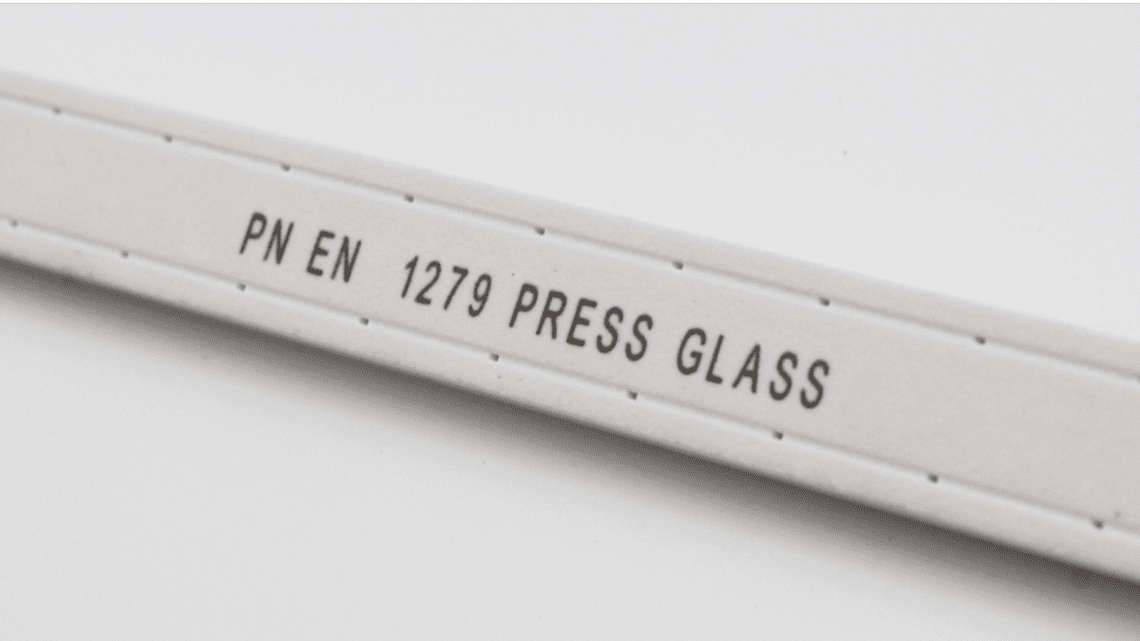

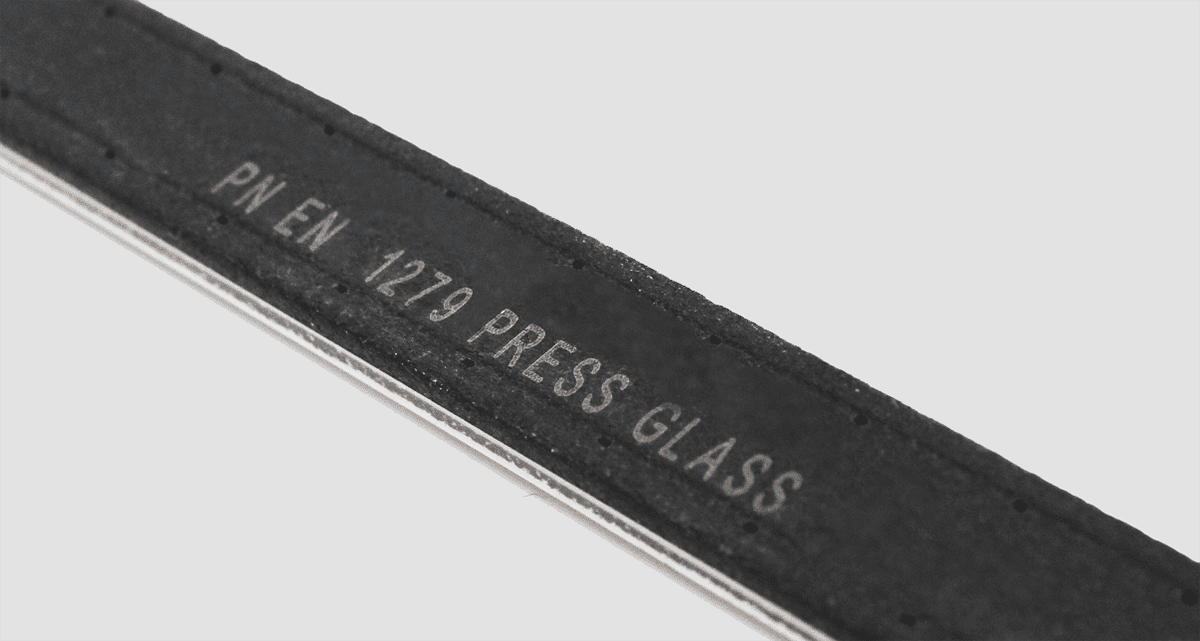

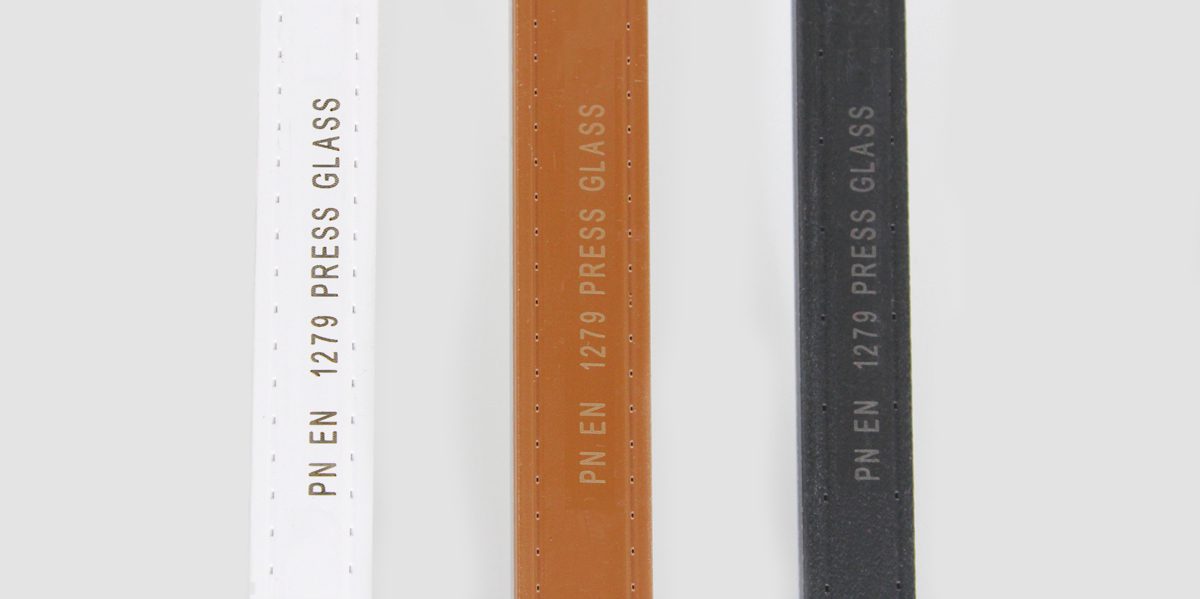

In this particular application, we have carried out laser marking on plastic in three different colors: brown, white and black. Using the same fiber laser, AB-F Series and a double outlined and filled typface, we achieved high contrast and legibility in all colors.
This time the marking was done dynamically, at 20m/min.
Technical Data

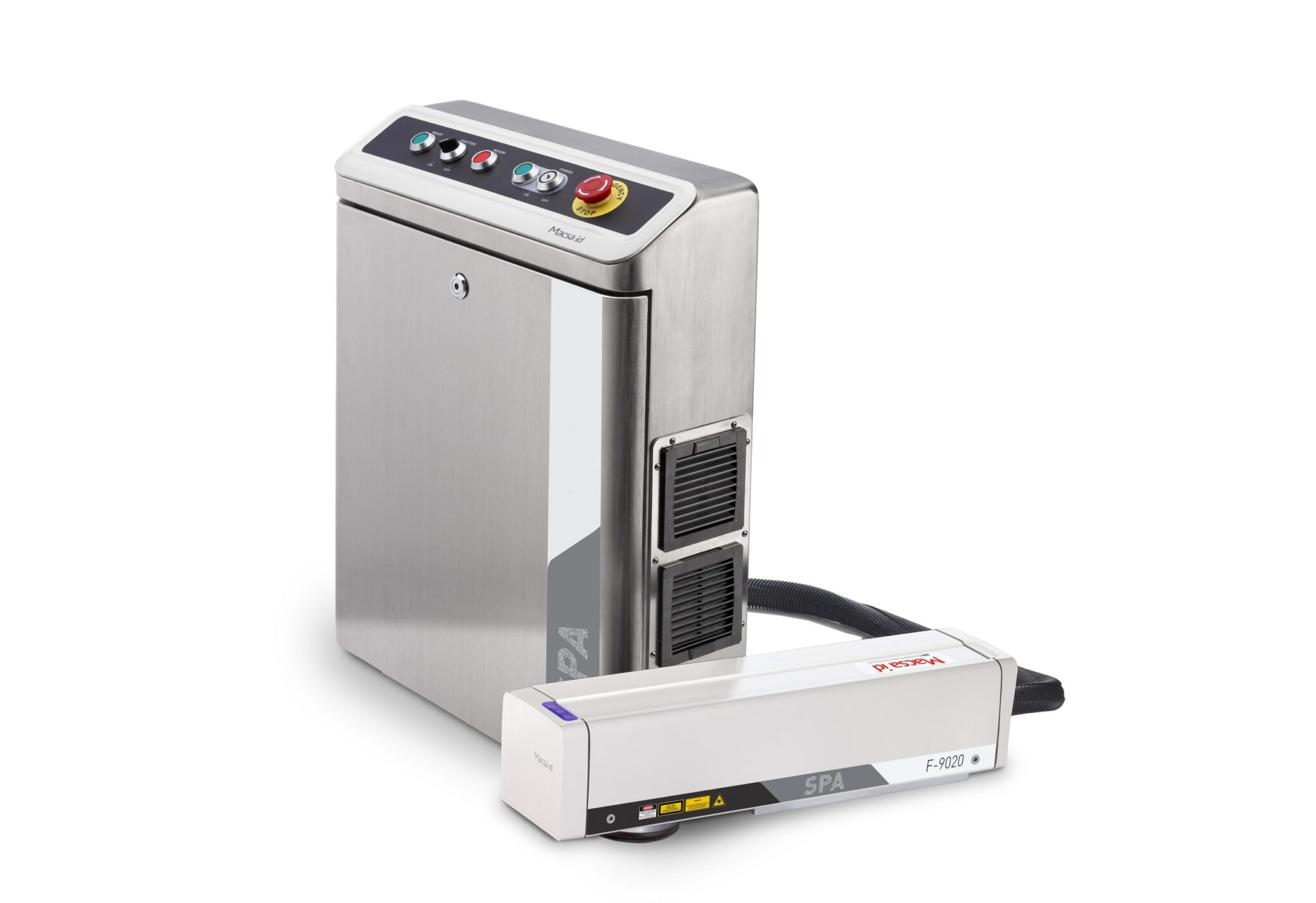

- Laser: Macsa id SPA F 9020
- Lens: 60x 60 mm
- Market: Construction
- Application Type: Coding
- Product: Spacer frames
- Material: Plastic
- Marking Type: Dynamic
- Marking Time: 20m / min
Would you like more information about Marking on extruded construction profile? Contact us and we will contact you shortly to find the best solution.
